NVIDIA IGX Orin
NVIDIA’s most powerful embedded system has arrived at ASI. The IGX Orin, an edge AI platform, brings together NVIDIA’s enterprise level hardware with pre-loaded software and a full stack of security features that protect the integrity of the device. Designed by NVIDIA to be rapidly approved for industries where all systems must undergo stringent testing, regulations, and approval, while executing computing power that is needed for such high-end industrial applications.
In specialized industrial verticals such as the medical and transportation fields as well as applications such as smart factories and autonomous robots, system builders are encountering challenges and delays getting solutions to market due to the need to adhere to strict regulations, and undergo multiple processes of approval. NVIDIA has stacked the IGX with everything at their disposal to ensure that it is ready for these highly stringent applications.
Security features are present at both the hardware and software level. ASIL-D functional safety readiness, redundant safety islands and hardware monitoring, secure boot and hardware root of trust, fault tolerance and error detection, and OTA security updates are all part of the package that is assembled to create an extremely capable, but also extremely secure, edge AI platform. These functionalities guarantee that sensor processing and AI models happen within strict timing windows, an essential feature for safety-critical AI applications.
The IGX has been designed to be fully capable of real-time processing analysis at the edge, significantly accelerating the processes of operation, making it ideal for applications such as security and medical devices, where time is always of the essence. Built for the edge in mind, the IGX Orin achieves its incredible computing capabilities while complying with the requirements of size dimensions and power draw that are always key concerns when it comes to deploying solutions at the edge.
The built-in security features and incredible computing power make it an excellent choice for companies that must adhere to the strictest security and safety requirements such as those engaged in the transportation and manufacturing fields. The capability for real-time data analysis at the edge makes it an ideal choice for medical solutions as well. These features come together to form an AI platform with extreme computing power, security, and support.

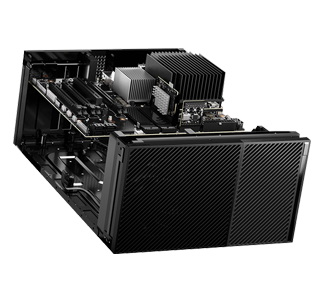

NVIDIA IGX Orin Developer Kit Key Specs
| AI Performance | Up to 1705 TOPs with optional RTX 6000 Ada GPU (Sparse) |

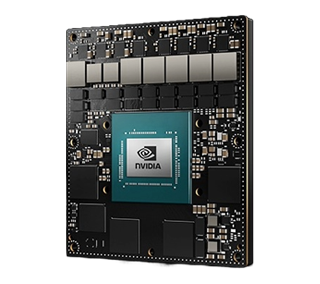

| SOM (System on Module) | GPU: 2,048-core NVIDIA Ampere architecture with 64 Tensor Cores CPU: 12-core Arm® Cortex®-A78AE v8.2 |
| NVIDIA ConnectX-7 | NVIDIA ConnectX-7 2x 100GbE 32-lane Gen 5 PCIe switch (x8 upstream, x16 Downstream, x8 Downstream) |
| Safety MCU (sMCU) | Infineon Aurix TC397 |
| NVIDIA BMC (Baseboard Management Controller) Module | Aspeed AST2600 Microchip ERoT |
| GPU Max Frequency | 1.185GHz |
| CPU Max Frequency | 1.971GHz |
