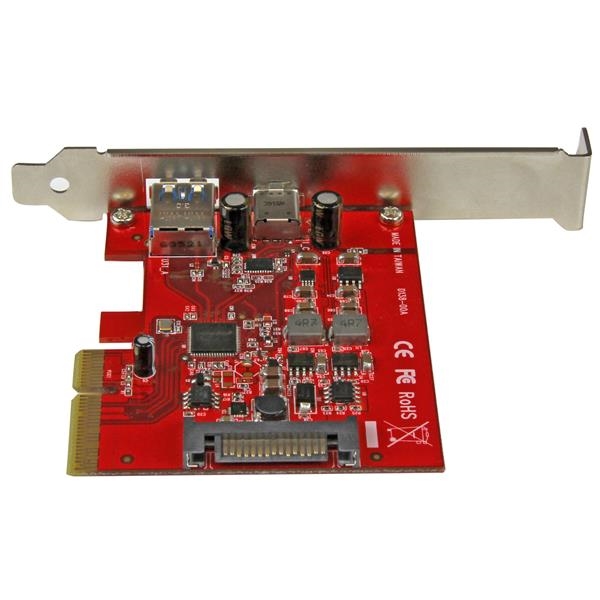

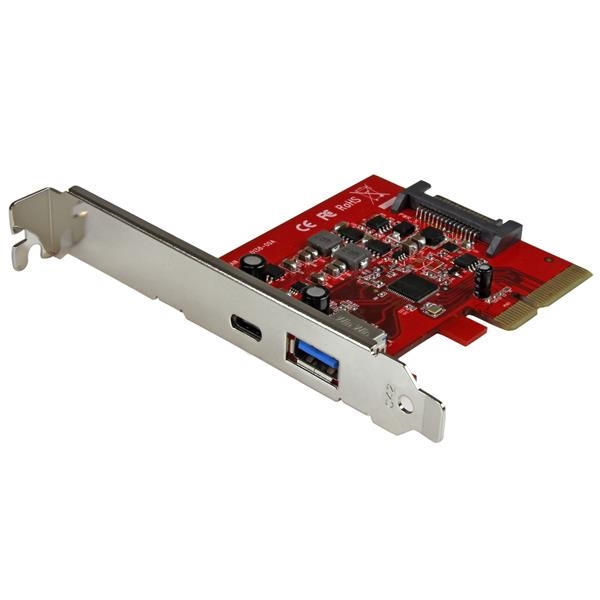

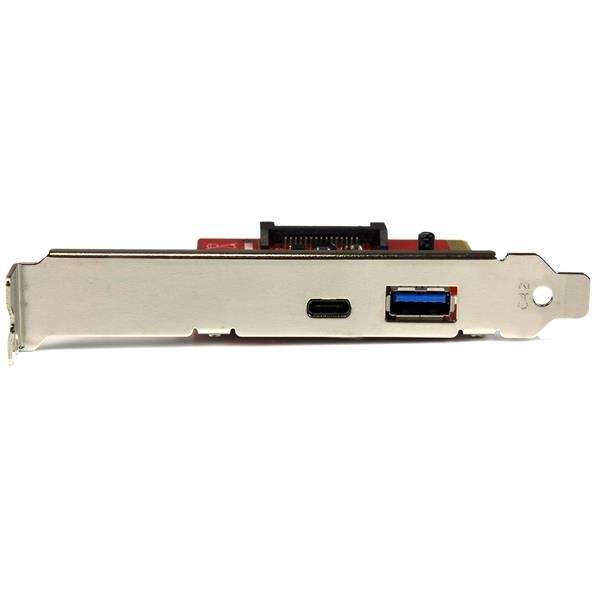

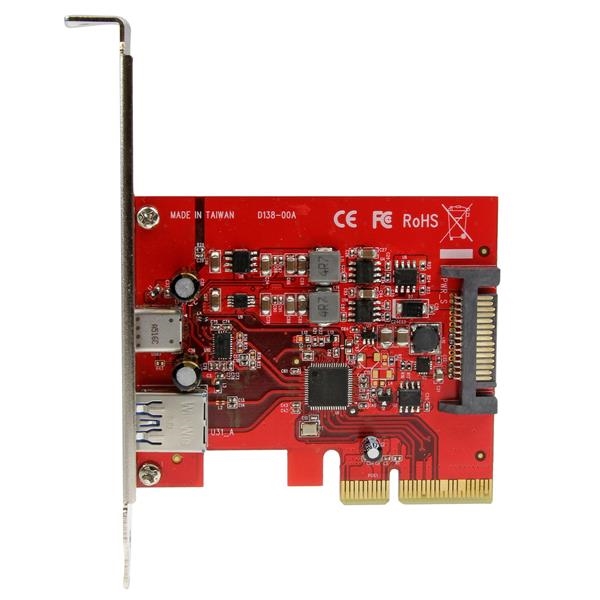

StarTech Controlloer Card PEXUSB311A1C 2 Port USB 3.1 Gen 2 10Gbps Card Retail
- SKU: 178596
- Vendor: StarTech
- UPC: 065030863568
•  Diversify the overall USB capabilities of your computer by adding USB Type-C and USB Type-A ports
•  Connect high-powered devices using the integrated ports and onboard SATA power connector
•  Fits into standard or low-profile systems with a dual-profile design
•  Fast, hassle-free setup
•  Cost-effective backward compatibility, works with USB 3.0 and 2.0 devices
•  PCIe x4 interface compliant with PCI Express Base Specification Revision 3.0
•  USB-C port is Thunderbolt 3 port compatible (10Gbps data only)
•  Compliant with UASP (USB Attached SCSI Protocol) Revision 1.0
•  Compliant with USB 3.1 Spec 1.0 and 2.0
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
ASMedia - ASM1142
Industry Standards
USB 3.1 Specification Rev. 1.0
USB Specification Rev. 2.0
PCI Express Base Specification Rev. 3.0
Intel xHCI Specification Rev. 1.1
UASP (USB Attached SCSI Protocol) Rev. 1.0
Interface
USB 3.1 Gen 2
Port Style
Integrated on Card
Ports
2
Maximum Data Transfer Rate
10Gbps
Type and Rate
USB 3.1 Gen 2 - 10 Gbit/s
UASP Support
Yes
Connector Type(s)
1 - PCI Express x4 Male
External Ports
1 - USB 3.1 USB Type-C (24 pin, Gen 2, 10 Gbps) Female
1 - USB 3.1 USB Type-A (9 pin, Gen 2, 10 Gbps) Female
Internal Ports
1 - SATA Power (15 pin) Plug
OS Compatibility
Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64)
Windows Server 2012, 2008 R2
Mac OS 10.9 and later (tested up to 10.10)
Linux 3.5
System and Cable Requirements
PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
SATA power connector
Item Dimension (L"xW"xH")
7 x 6 x 2
Weight
1 lb
Warranty Information
2 Year Warranty
