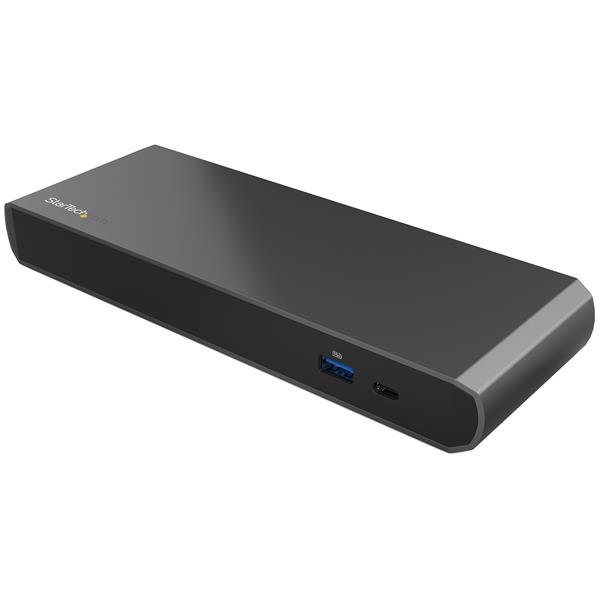

StarTech Accessory TB3DK2DPW Thunderbolt3 Docking Station Dual 4K HDMI/mDisplayPort/USB
- SKU: 178606
- Vendor: StarTech
- UPC: 065030864893
The high-quality dock merges performance with simplicity, to create a single-cable solution that caters to creative professionals such as video producers, graphic and web designers, engineers, architects, and many more.
Finish your work faster with Thunderbolt 3
You can quickly integrate the dock into your workspace and boost your productivity. With up to 40Gbps of throughput, you can add extra displays to your laptop, access files faster, and reduce waiting, so you can accomplish more in the same amount of time.
It’s the fastest connection available, and it supports multiple video channels, data, and power, without impacting system performance. It’s easy to access and edit large uncompressed files such as videos and images on the fly, making it ideal for dynamic on-site production.

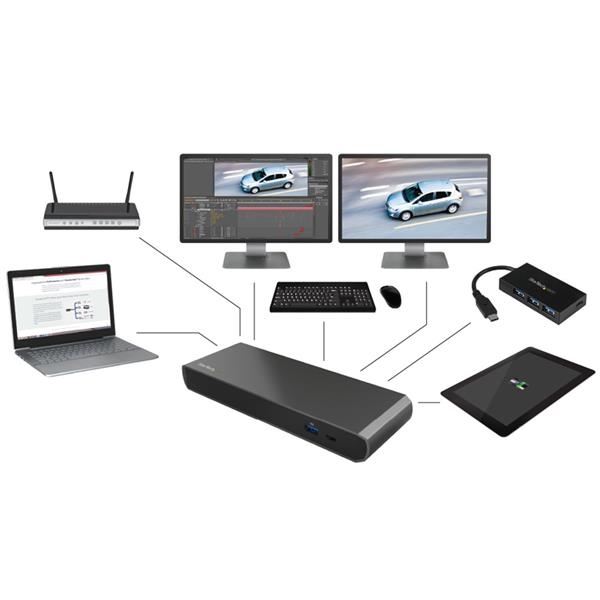

Multitask at the highest resolution
If you need a larger, higher-resolution viewing area, this dock can help. It’s one of the first docking stations to support two 4K Ultra HD displays, so it’s perfect for anyone working with high-bandwidth or graphics-intensive multimedia. Plus, each display supports 4096 x 2160p resolutions at 60Hz, giving you more screen space at a higher resolution and faster refresh rates than traditional 3840 x 2160p 4K 30Hz docking stations.
4K Support
Yes
Bus Type
Thunderbolt 3
Chipset ID
Intel - Alpine Ridge DSL6540 (Thunderbolt 3)
Texas Instruments - TPS65982ABZQZR (Power Delivery)
Texas Instruments - HD3SS2522 (CC Logic)
Parade - PS181 (Video)
Fresco Logic - FL1100-EX (USB 3.0)
Texas Instruments - TPS2546RTE (USB Charge)
Texas Instruments - PCM2912APJT (Audio)
Intel - WGI210AT (LAN)
Fast-Charge Port(s)
Yes
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Data Transfer Rate
40 Gbps (Thunderbolt 3)
10 Gbps (USB 3.1 Gen 2)
5 Gbps (USB 3.0)
2 Gbps (Ethernet Full-Duplex)
Maximum Digital Resolutions
Single display - DisplayPort - 4096 x 2160p (60Hz)
Single display - Thunderbolt 3 USB-C - 5120p x 2880p (60Hz)
Dual displays - DisplayPort and Thunderbolt 3
USB-C - 4096 x 2160p (60Hz) and 4096 x 2160p (60Hz)
Type and Rate
Thunderbolt 3 - 40 Gbit/s
UASP Support
Yes

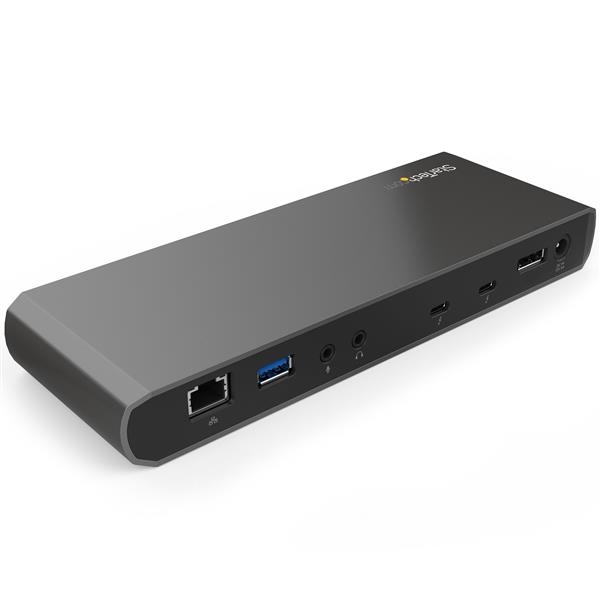

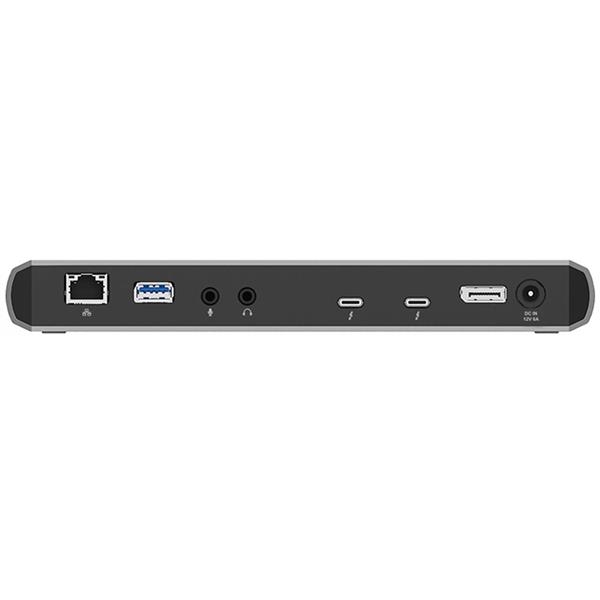

Connector Type(s)
2 - Thunderbolt 3 USB-C (24-pin) Female
1 - DisplayPort (20 pin) Female
1 - USB 3.1 USB Type-C (24 pin Gen 1 5 Gbps) Female
1 - USB 3.0 A (Fast-Charge 9 pin SuperSpeed) Female
1 - USB 3.0 A (9 pin SuperSpeed) Female
2 - 3.5 mm Mini-Jack (3 Position) Female
1 - RJ-45 Female
OS Compatibility
Windows 10 (32-bit or 64-bit), 8 / 8.1 (32-bit or 64-bit), 7 (32-bit or 64-bit)
Item Dimension (L"xW"xH")
10 x 6 x 5
Weight
3 lb
Warranty Information
2 Year Warranty
