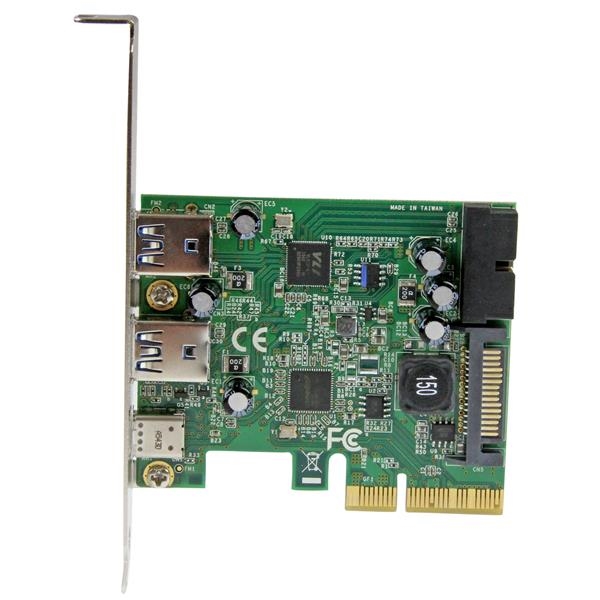

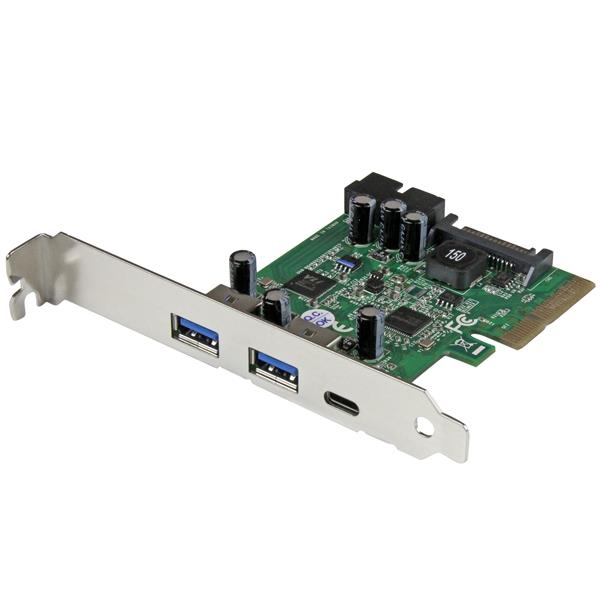

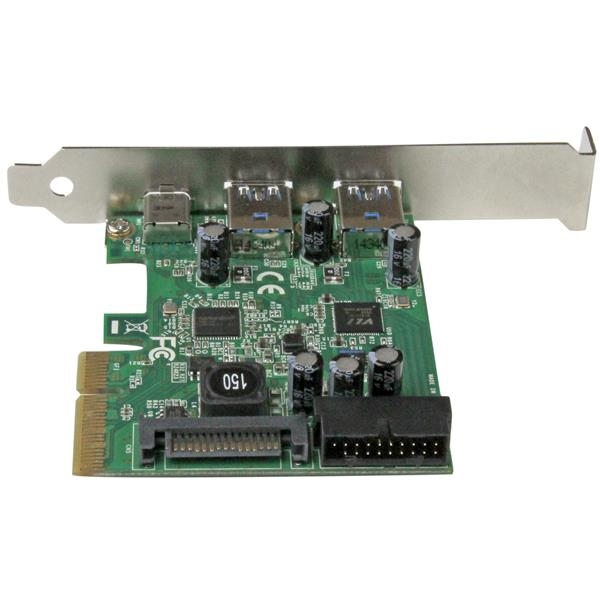

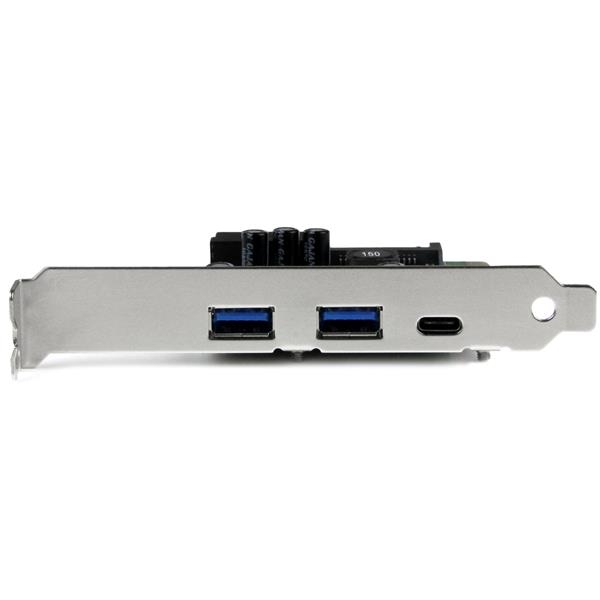

Startech I/O Cards PEXUSB312EIC 5-port USB 3.1 Gen 10Gbps Combo Card PCI Express Retail
- SKU: 187281
- Vendor: StarTech
- UPC: 065030865494
By offering a range of USB port types, you can easily connect a variety of modern and legacy USB devices, both inside and outside your computer.
Because the card offers a 10Gbps USB-C port (USB 3.1 Gen 2), you can save time and avoid the performance bottlenecks that are often associated with other connectivity technologies.
Work faster and prepare for the future
This versatile PCI Express combo card leverages the performance potential of USB 3.1 to help you work faster. The USB-C port offers a data throughput of up to 10Gbps, so you can spend less time waiting for file transfers to complete or for access to your external peripherals.
Plus, you can rest assured that youre set for the future, as USB-C devices become more popular and more standardized.
Hardware
Bus Type
PCI Express
Card Type
Standard Profile (LP bracket incl.)
Chipset ID
ASMedia - ASM1142 (USB 3.1)
VLI - VL812 (USB 3.0)
Industry Standards
USB 3.1 Specification Rev. 1.0
USB Specification Rev. 2.0
PCI Express Base Specification Rev. 3.0
Intel xHCI Specification Rev. 1.1
UASP (USB Attached SCSI Protocol) Rev. 1.0
Interface
USB 3.0
USB 3.1 Gen 2
Port Style
Integrated on Card
Ports
5
Performance
Maximum Data Transfer Rate
10Gbps
MTBF
50,000 Hours
Type and Rate
USB 3.1 Gen 2 - 10 Gbit/s
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Connector(s)
Connector Type(s)
1 - PCI Express x4 Male
External Ports
2 - USB Type-A (9 pin) USB 3.0 Female
1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Female
Internal Ports
2 - IDC (20 pin USB 3.0 Motherboard Header) Receptacle
1 - SATA Power (15 pin) Plug
Software
OS Compatibility
Windows 10 (32/64), 8 / 8.1 (32/64), 7 (32/64)
Windows Server 2012, 2008 R2
Mac OS 10.10, 10.9, 10.8
Linux 3.5
Special Notes / Requirements
Note
The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
System and Cable Requirements
PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
SATA power connector
Environmental
Humidity
5 to 95% RH (Non-condensing)
Operating Temperature
0oC to 70oC (32oF to 158oF)
Storage Temperature
-20oC to 70oC (-4oF to 158oF)
Included in Package
1 - 5-port USB 3.1 combo card
1 - low-profile bracket
1 - quick-start guide
Item Dimension (L inchxW inchxH inch)
7 x 6 x 2
Weight
1.00 lb
Warranty Information
2 Year Warranty
