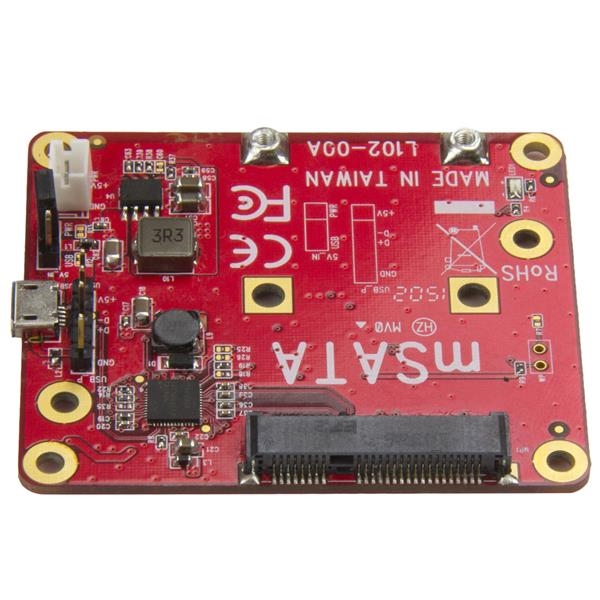

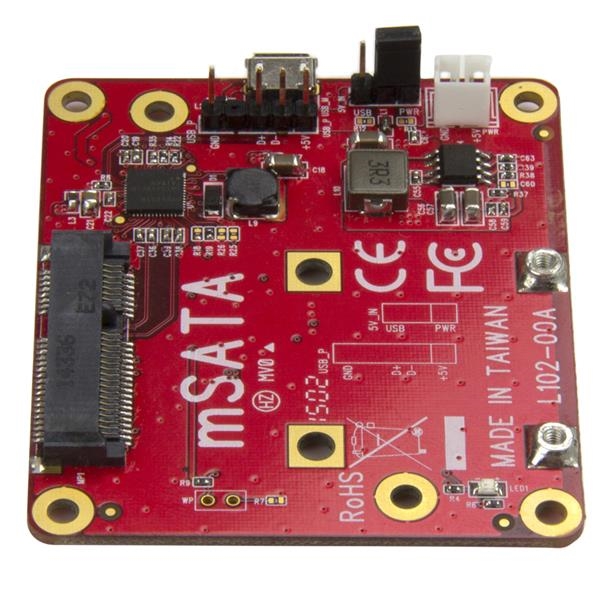

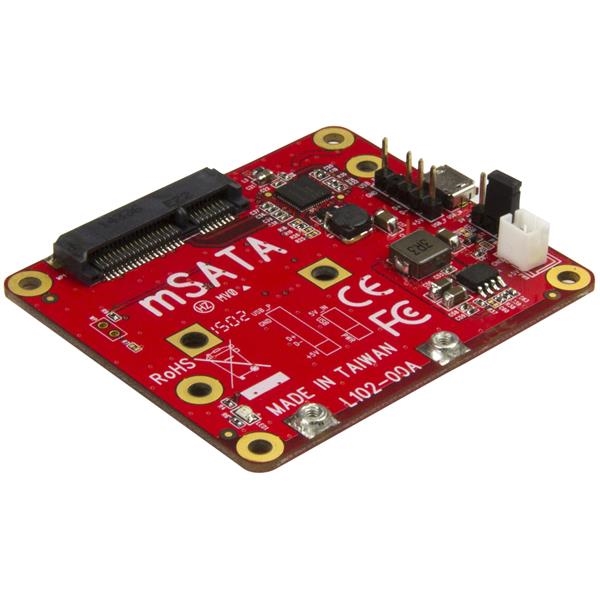

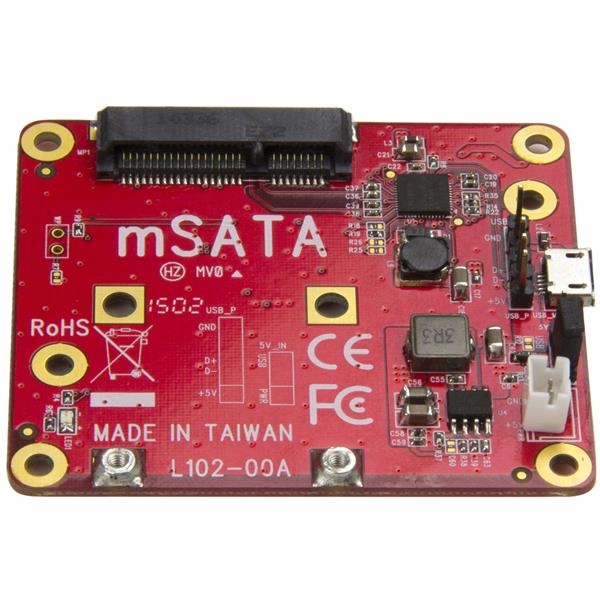

StarTech Hard Drive Accessory PIB2MS1 USB to mSATA Converter for Raspberry Pi and Development Boards
- SKU: 194471
- Vendor: StarTech
- UPC: 065030866804
Add storage capacity to your development board
This convenient USB 2.0 mSATA converter lets you overcome data storage limitations by enabling you to connect an mSATA drive through your boards USB-A port.
A convenient integrated solution
The USB to mSATA converter integrates seamlessly with your existing development board. Its the perfect addition for development-board based applications such as surveillance, media players and servers, digital signage and IoT/automation solutions. It allows you to utilize your mSATA drives with your development board, and take advantage of the small form factor of mini-SATA, ideal for applications with space limitations.
Easy to install

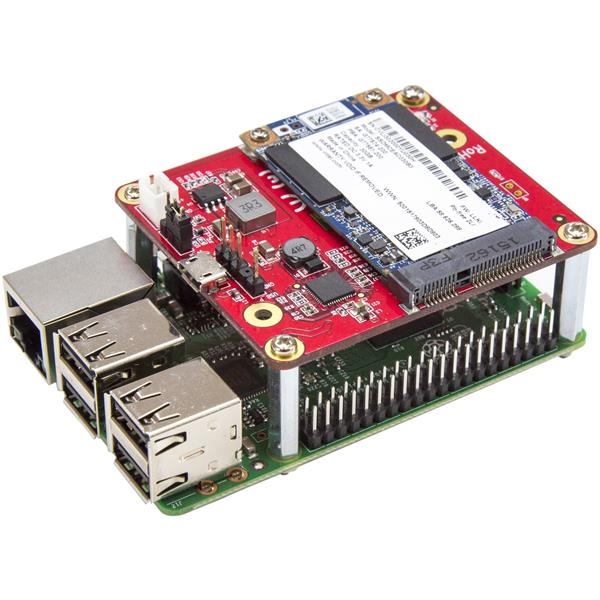

Compatible with SATA I, SATA II and SATA III drives, the converter is easy to install and doesnt require any device driver installation. It comes with a USB cable and all mounting accessories, including standoffs, so integrating it with your Raspberry Pi is fast and easy.
Hardware
Bus Type: USB 2.0
Chipset ID: Renesas - PD720231A
Compatible Drive Types: mSATA (Mini SATA)
Drive Size: mSATA (Full Size)
Interface: USB 2.0
Number of Drives: 1
Performance
Maximum Data Transfer Rate: 480 Mbps
MTBF: 5,077,966 hrs
Connector(s)
Drive Connectors: 1 - mSATA (52 pin, Mini SATA) Slot
Host Connectors: 1 - USB Micro-B (5 pin)
Software
OS Compatibility: OS independent No software or drivers required
Power
Power Source: USB-Powered
Environmental
Humidity: 15% - 90% RH
Operating Temperature: 5oC to 50oC (41oF to 122oF)
Storage Temperature: -25oC to 70oC (-13oF to 158oF)
Physical Characteristics
Color: Red
Whats in the Box
Included in Package
1 - USB to mSATA converter
1 - USB-A to Micro-B cable
4 - standoffs
4 - nuts
4 - screws
2 - mSATA mounting screws
1 - quick-start guide
Item Dimension (L"xW"xH")
7 x 6 x 2
Weight
0.20 lb
Warranty Information
2 Years
