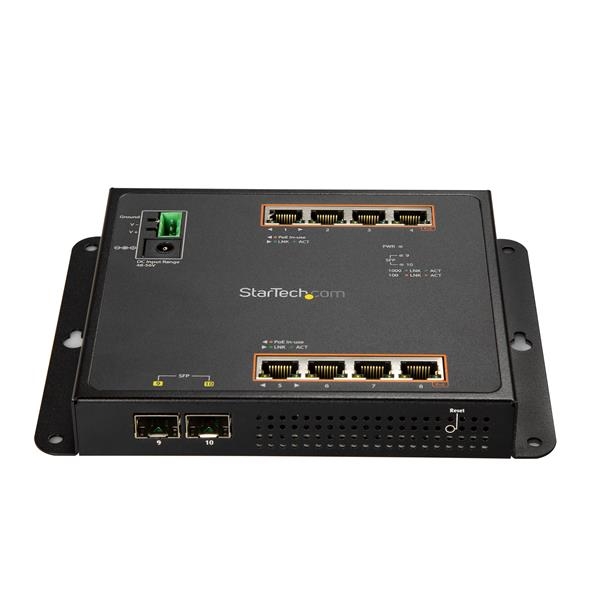

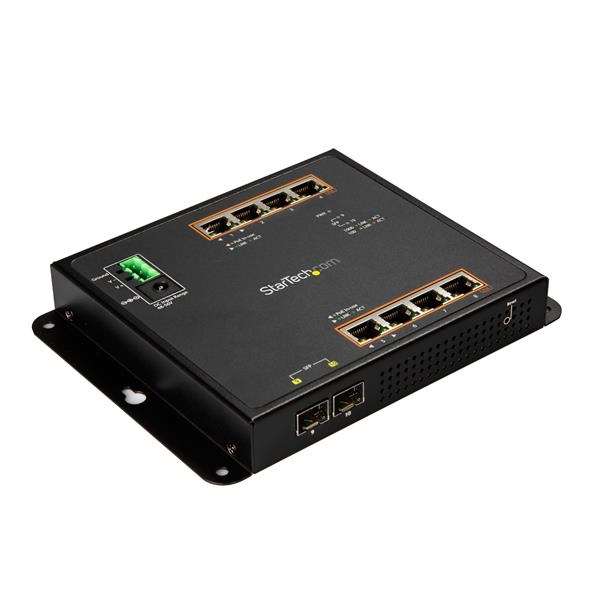

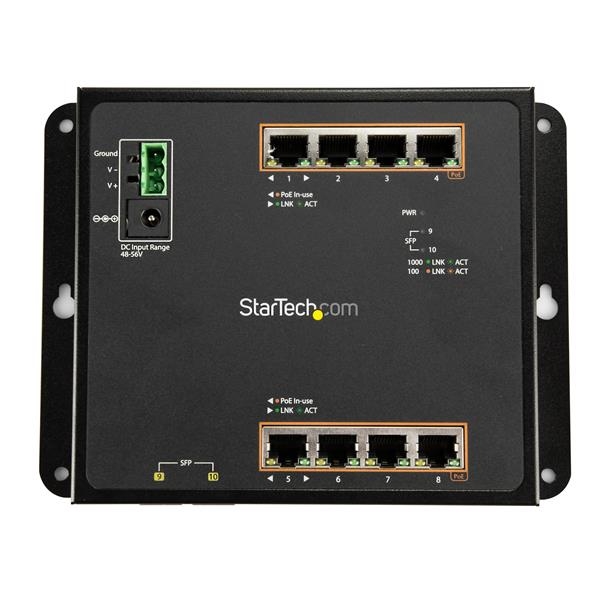

Startech Networking IES101GP2SFW 8PT Gigabit Ethernet Switch PoE 2SFP Managed Retail
- SKU: 198472
- Vendor: StarTech
- UPC: 065030871198
Expand your network
This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection.
Supports PoE+ for flexible use
Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget).
Wall-mountable with front access
Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable.
Hardware
Industry Standards
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T
IEEE 802.3z 1000Base-SX/LX
IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, IEEE 802.1q VLAN Tagging, IEEE 802.1p QoS, IEEE 802.1x Port-Based Network Access Control, IEEE802.3ad Link Aggregation, IEEE 802.1d Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol
Interface
RJ45 (Gigabit Ethernet)
Fiber Ethernet
Ports
10
Performance
Auto MDIX
Yes
Buffer Size
512 KB
Compatible Networks
10/100/1000 Mbps
Flow Control
IEEE 802.3x pause frame for full-duplex, back pressure for half-duplex
Full Duplex Support
Yes
Jumbo Frame Support
9K max.
Maximum Cable Length
328 ft (100 m)
Maximum Data Transfer Rate
2 Gbps (Full-Duplex)
MTBF
> 100,000 hrs 25 degrees C
Supported Protocols
IEEE 802.3ad Port Trunk with LACP, IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree Protocol, IEEE 802.1s Multiple Spanning Tree Protocol, IEEE 802.1p Class of Service, RFC 3810 MLD version 2, RFC 792 ICMP, RFC 2068 HTTP, RFC 1112 IGMP version 1, RFC 2236 IGMP version 2, RFC 3376 IGMP version 3, RFC 2710 MLD version 1, IEEE 802.1Q VLAN Tagging, IEEE 802.1x Port Authentication Network Control, bIEEE 802.1ab LLDP, RFC 768 UDP, RFC 793 TFTP, RFC 791 IP
Surge Protection
6kV ESD, 6kV EFT
Switching Architecture
Store-and-Forward
Connector(s)
Connector Type(s)
8 - RJ-45 (PoE+) Female
2 - SFP Slot Female
1 - Terminal Block (3 Wire) Male
Special Notes / Requirements
Note
8 ports support IEEE 802.3at Power over Ethernet Plus (PoE+) and IEEE 802.3af Power over Ethernet (PoE)
Supports PoE Powered Device alive check, scheduled power recycling, and time-based PoE schedule
PoE power up to 30W per PoE+ port (200W budget) and remote PoE power control
A power adapter is not included with this switch.
Link/Activity (green)
2 - 100Mbps Link/Activity (yellow)
1000Mbps Link/Activity (green)
Power
Input Current
1A minimum
Input Voltage
12 - 48 DC
Plug Type
M
Power Source
Terminal Block
Environmental
Humidity
5-95% RH (Non-Condensing)
Operating Temperature
-40o to 75oC (-40o to 167oF)
Storage Temperature
- 40o to 90oC (-40o to 194oCF)
Physical Characteristics
Color
Black
Enclosure Type
Steel
Whats in the Box
Included in Package
1 - network switch
1 - terminal block connector
4 - screw anchors
4 - screws
4 - attaching pins
4 - locking pins
4 - washers
4 - magnets
1 - DIN rail
3 - DIN-rail screws
8 - RJ45 dust caps
2 - SFP dust caps
1 - quick-start guide
Item Dimension (L inchxW inchxH inch)
12 x 7 x 4
Weight
3.00lb
Warranty Information
2 Years
