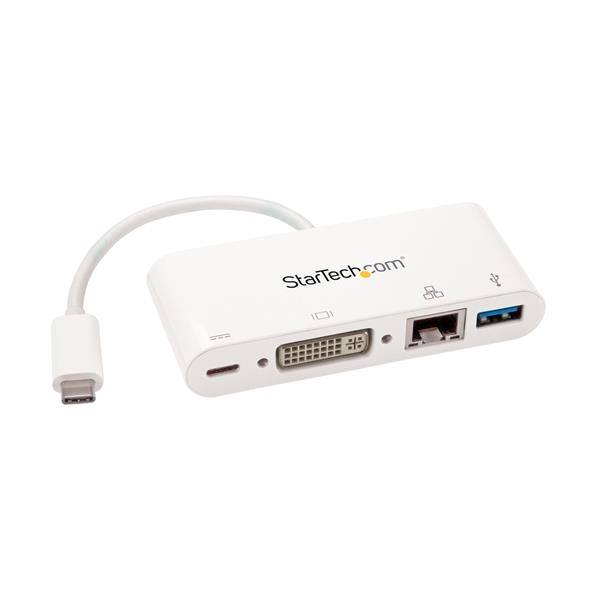

StarTech Accessory DKT30CDVPD USB-C DVI GbE Multi Adapter with Power Delivery for Laptops Retail
- SKU: 199684
- Vendor: StarTech
- UPC: 065030870702
You can also power both the multiport adapter and your laptop simultaneously, with support for USB Power Delivery 2.0. It’s the ideal accessory for your Dell XPS, MacBook Pro or other USB Type-C™ equipped laptop, and it’s also Thunderbolt™ 3 port compatible.
Create a powerful workstation
The multiport adapter expands the connectivity of your port-limited laptop, using the built-in USB-C cable to connect to multiple devices simultaneously. When coupled with your laptop display, this versatile USB-C multiport adapter makes it easy to create a dual-monitor workstation when you need it. Connect to a DVI display in an office workspace or your home office with ease.
The Gigabit Ethernet port ensures reliable wired network access, plus with an additional USB 3.0 Type-A port, you can connect an existing peripheral device, like your mouse or flash drive.
Get reliable network connectivity
The Gigabit Ethernet port ensures reliable wired network access, ideal for areas with limited Wi-Fi availability.
Designed for easy portability
This compact multiport adapter is USB-powered, so there’s no need to carry a separate power adapter with you. Ideal for mobile use from office to home, or for travel, the multiport adapter features a USB-C port that supports USB Power Delivery 2.0 so you can power and charge your laptop as you work. The adapter features a built-in USB-C cable and gives you network connectivity plus a USB Type-A connection for optimum versatility as you travel.
Hardware
4K Support
Yes
Audio
Yes
Bus Type
USB-C
Chipset ID
VLI - VL812 (USB 3.0 Hub)
VLI - VL100 (USB Power Delivery)
PS - PS171 (DVI)
Realtek - RTL8153 (LAN)
Displays Supported
1
Fast-Charge Port(s)
No
Industry Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
USB 3.0 - Backward compatible with USB 2.0 and 1.1
Performance
Auto MDIX
Yes
Compatible Networks
10/100/1000 Mbps
Full Duplex Support
Yes
Maximum Data Transfer Rate
5 Gbps (USB 3.0)
2 Gbps (Ethernet Full-Duplex)
Maximum Digital Resolutions
1920 1200 - 60 Hz (DVI)
Output Signal
DVI-D (DVI Digital)
Type and Rate
USB 3.0 - 5 Gbit/s
UASP Support
Yes
Connector(s)
Connector Type(s)
1 - USB Type-C (24 pin) USB 3.0 Male
1 - 29 pin DVI-I (Dual Link) Female
1 - RJ-45 Female
1 - USB Type-A (9 pin) USB 3.0 Female
1 - USB-C (24 pin) USB Power Delivery only Female
Software
OS Compatibility
Windows 7, 8.1, 10
Mac OS 10.11 to 10.12
Chrome OS
Special Notes / Requirements
Note
Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
The adapter can connect to a host laptops USB-C port that doesnt support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
USB 3.0 is also known as USB 3.1 Gen 1 this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements
A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)
Optional: USB-C power adapter (for example, your laptops USB-C based power adapter)
Power
Power Delivery
60W
Power Source
USB-Powered
Environmental
Humidity
0-85% RH (Non-condensing)
Operating Temperature
0o to 45oC (32o to 113oF)
Storage Temperature
- 10o to 70oC (14o to 158oF)
Physical Characteristics
Color
White
Whats in the Box
Included in Package
1 - multiport adapter
1 - instruction manual
Item Dimension (L inchxW inchxH inch)
6 x 7 x 2
Weight
1.00lb
Warranty Information
3 Year Warranty
