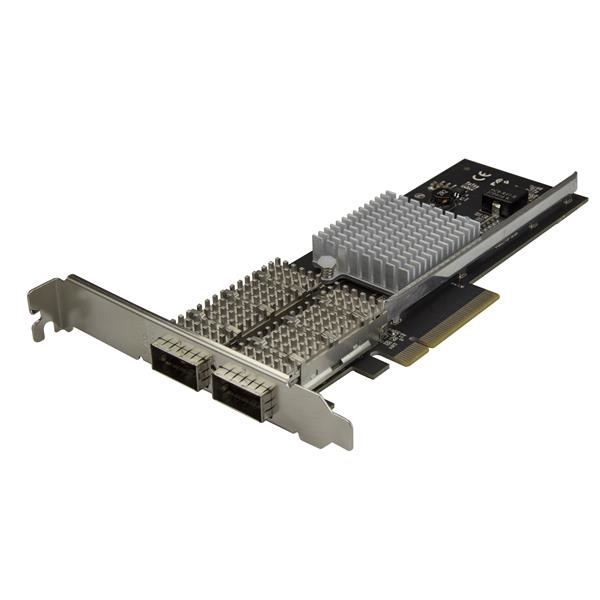

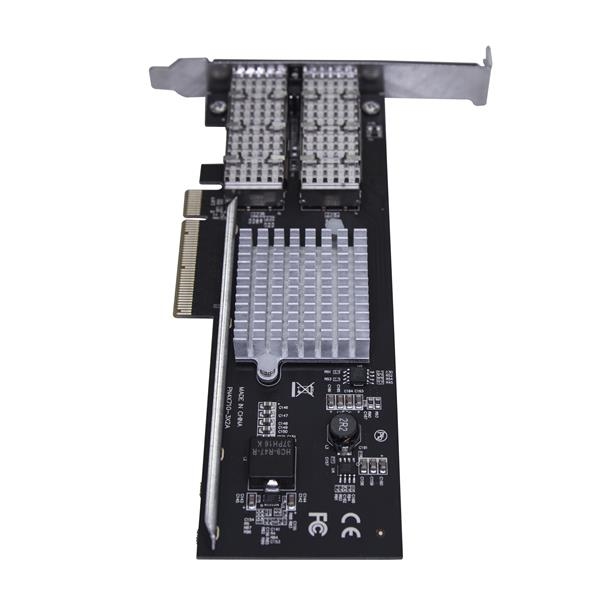

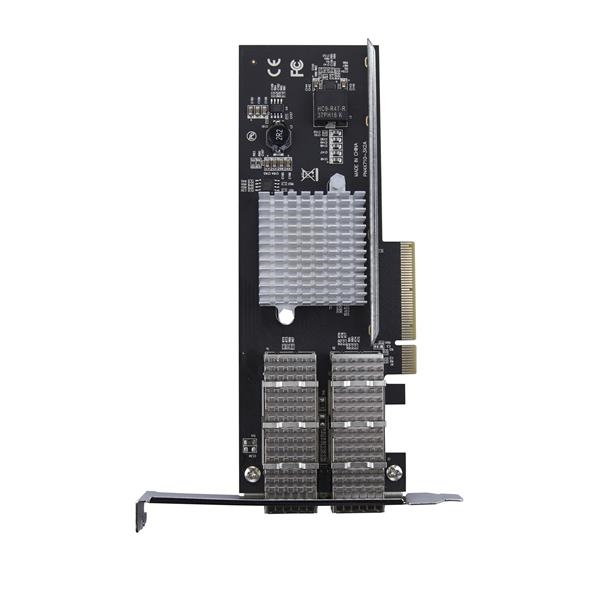

StarTech IO PEX40GQSFDPI Dual-Port QSFP+ Server NIC Card PCIE Intel Chip

  • SKU: 212382
  • Vendor: StarTech
  • UPC: 065030872676
Get fast, high-bandwidth connectivity with this dual-port QSFP+ Network Interface Card. It adds two open QSFP+ slots to your server or workstation. The 40G NIC features an Intel® controller and provides redundant network links with reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.

Increase your network speed
This dual port QSFP+ server NIC card lets you take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps.

Add redundant connections in zero-downtime environments
With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.

Add scalable network connections
With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.

Enhance your network capabilities
The 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.

Hardware
Bus Type:PCI Express
Card Type:Standard Profile (LP bracket incl.)
Chipset ID:Intel - XL710-BM2
Industry Standards:IEEE 802.3ba 40GBASE-SR4
IEEE 802.3ba 40GBASE-LR4
PCI Express Rev 3.0, using PCIe x8 (or higher) slot
Ports:2

Performance
Compatible Networks:40 Gbps
Full Duplex Support:Yes
Jumbo Frame Support:9K max.
PXE:No
Supported Protocols:IEEE 802.3ad (Link Aggregation)
IEEE 802.3x (Flow Control Support)
IEEE 802.1Q (VLAN tagging)

Connector(s)
Connector Type(s):1 - PCI Express x8 Male
2 - QSFP+ Female

Software
OS Compatibility:Windows 7, 8, 8.1, 10 (64-bit Only)
Windows Server 2008 R2, 2012, 2012 R2, 2016 (64-bit Only)
Linux 2.6.24 to 4.11.x (64-bit Only)< LTS Versions only

Indicators
LED Indicators:2 - Link/Activity (green)

Indicators
LED Indicators:2 - Link/Activity (green)

Physical CharacteristicsColor:
Black

What is in the Box
Included in Package:1 - network card
1 - low-profile bracket
1 - quick-start guide

Item Dimension (L inchxW inchxH inch)
8 x 5 x 1

Weight
1.00lb

Warranty Information
2 Years
