StarTech Network IES8100POE 8 Port 10/100 PSE Industrial Power over Ethernet Switch Retail
- SKU: 240579
- Vendor: StarTech
- UPC: 065030845533
• Max. 15.4 W for each PSE/PoE port
• Auto-detect full/half-duplex, MDI/MDI-X

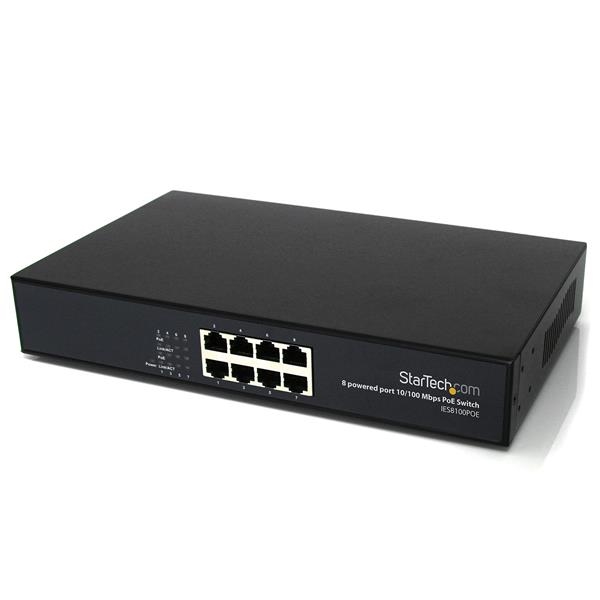

The IES8100POE 8-port 10/100 Mbps Power over Ethernet (PoE) Switch enables you to supply both power and data to up to 8 PoE-capable devices.
The switch complies with 802.3af standards and supplies up to 15.4 W per port - plenty of power for your PoE devices. A flexible solution giving you the freedom to place your equipment in locations where power outlets are not available, this compact PoE Switch features 8 auto-detecting full/half-duplex ports with automatic crossover detection (MDI/MDI-X). A sturdy metal enclosure provides durability in harsh industrial environments.
HARDWARE
Industry Standards
IEEE 802.3af, IEEE802.3 10BASE-T, IEEE802.3u
100BASE-TX/FX, IEEE802.3x
Ports
8
PERFORMANCE
Buffer Size
512 KB
Compatible Networks
10/100 Mbps
Flow Control
Half-duplex back-pressure and IEEE802.3x full-duplex flow control
Switching Architecture
Store-and-Forward
CONNECTOR(S)
External Ports
8 - RJ-45 Female
SOFTWARE
OS Compatibility
OS Independent, No additional drivers or software required
SPECIAL NOTES / REQUIREMENTS
Patents and Licenses
The following patents are licensed for this product. This list might not be all inclusive.
United States Patent No. 5,406,260 (expired)
United States Patent No. 6,650,622
United States Patent No. 7,457,250
United States Patent No. 8,155,012
United States Patent No. 8,902,760
United States Patent No. 8,942,107
United States Patent No. 9,019,838
United States Patent No. 9,049,019
United States Patent Application No. 14/695,456
United States Patent Application No. 14/726,940
INDICATORS
LED Indicators
1 - Power
8 - Link/Act
8 - PoE Act/Status
POWER
Input Voltage
110V-240V AC
Power Consumption (In Watts)
132
Power Source
AC Adapter Included
ENVIRONMENTAL
Humidity
10 - 95% RH
Operating Temperature
0oC to 45oC (32oF to 113oF)
Storage Temperature
-10oC to 70oC (14oF to 158oF)
PHYSICAL CHARACTERISTICS
Color
Black
Material
Steel

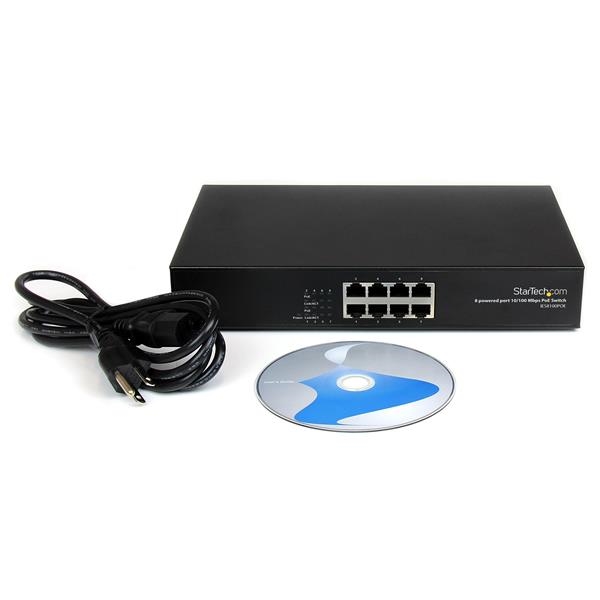

WHATS IN THE BOX
Included in Package
1 - 8 Port PoE Switch
1 - Power Cord
1 - Instruction Manual
Item Dimension (L inchxW inchxH inch)
10 x 12 x 3
Weight
4.35 lb
Warranty Information
2 Year Warranty
